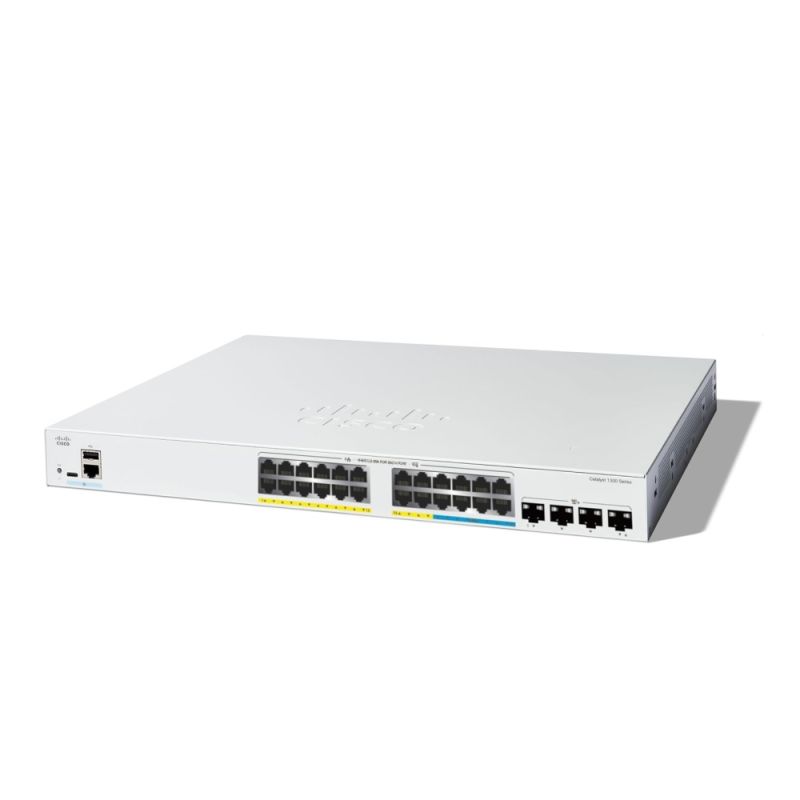

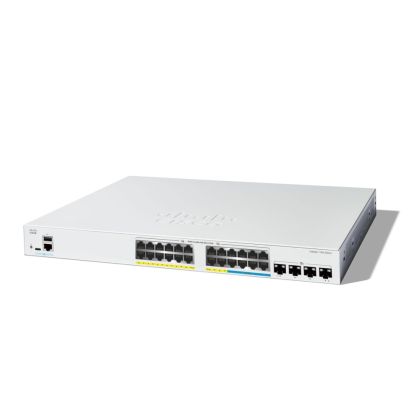

Комутатор Cisco Catalyst 1300 8-port 2.5GE, 16-port GE, PoE, 4x10G SFP+

Характеристики

• Сигурност:
  SSH, SSL, IEEE 802.1x (authenticator role):RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions; MAC/Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; AC...
• Размери (Ш, Д, В), mm:
  445 x 350 x 44 mm
• Суич, тип:
  Fixed Port
• Общ брой портове:
  28
• Основни портове, тип:
  16x 10/100/1000Base-T + 8x 10/100/1000/2500Base-T PoE+ports with 375W PoE power budget
• Power Over Ethernet (PoE):
  PoE+ (375W); 24 ports; 802.3at PoE+, 802.3af
• Uplink портове:
  4x10G SFP+
• Свободни (10GB) слотове:
  -
• Stackable:
  Hardware stacking: Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover
• Fans_TEXT:
  Fanless
• Капацитет за маршрутизиране/превключване, Gbps:
  152 Gbps
• Пропускателна способност, Mpps:
  113.08 Mpps
• MAC адреси:
  16 000 addresses
• L2 мрежови стандарти:
  IEEE 802.3, IEEE 802.3u/ab/ad/z/x/ae/an/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC
• Опция за монтаж:
  Rackmount
• Routing:
  Dynamic Layer 3 routing
• Памет (Flash, RAM):
  512 MB (Flash), 1 GB DDR4 (DRAM), 1.5 MB (Packet buffer)
• VLAN (брой, стандарти):
  Support for up to 4093 VLANs simultaneously; Port-based/802.1Q tag-based/MAC-based/protocol-based/IP subnet-based/Management/Private/ Guest/unauthenticated VLAN; Dynamic VLAN assignment via RADIUS; ASV; Voice/Multicast TV VLAN
• IPv6 functionality:
  IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); DAD, ICMP; DHCPv6; IPv6 over IPv4 network with ISATAP tunnel support; IPv6 QoS; ACL; First Hop Security; MLD
• Захранване:
  100-240V 50-60 Hz, internal, universal
• Гаранция:
  99
• QoS:
  8 hardware queues; Strict priority and WRR; Port-based, 802.1p VLAN priority-based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DS...
• Управление:
  Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Other: Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc.
