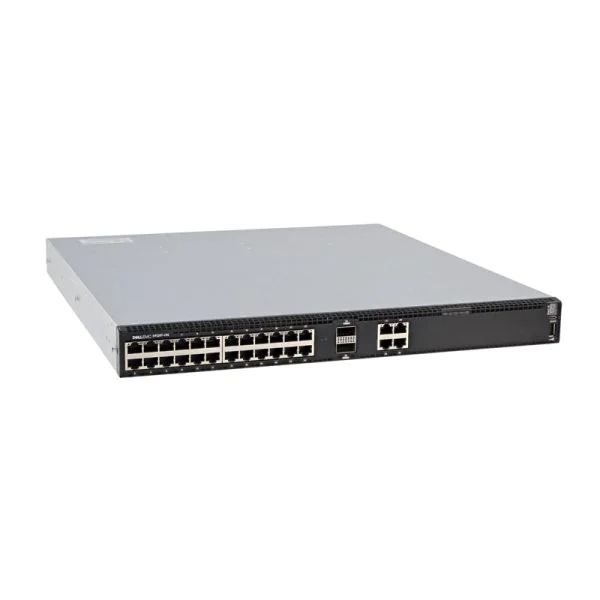

Комутатор Dell Switch S4128T-ON, 1U, 28 x 10Gbase-T, 2 x QSFP28, IO to PSU, 2 PSU, Dell Networking, Cable,40GbE (QSFP+) to 4 x 10GbE SFP+ Passive Copper Breakout Cable, 3 Meters, OS10 Enterprise

Характеристики

• Други:
  1 RJ45 console/management port with RS232 signaling, 1 RJ45 micro-USB-B console port, 1 RJ45 10/100/1000Base-T management Ethernet port
• Сигурност:
  RADIUS, Radius and IPv6, SSHv2, Security Architecture for IPSec, IPSec Authentication Header, ESP Protocol
• Размери (Ш, Д, В), mm:
  431 x 457 x 44
• Суич, тип:
  Fixed Port
• Общ брой портове:
  30
• Основни портове, тип:
  28x 10GBase-T
• Power Over Ethernet (PoE):
  No
• Uplink портове:
  2xQSFP28
• Свободни (10GB) слотове:
  No
• Stackable:
  No
• Fans_TEXT:
  4x Fan module
• Fans:
  Да
• Капацитет за маршрутизиране/превключване, Gbps:
  960 Gbps
• Пропускателна способност, Mpps:
  720 Mpps
• MAC адреси:
  272K (in Scaled L2 mode)
• L2 мрежови стандарти:
  IEEE compliance: 802.1AB, 802.1s, 802.1w, 802.3ab, 802.3ad, 802.3ae, 802.3ba, 802.3i, 802.3u, 802.3z, 802.1D, 802.1p, 802.1Q, 802.1Qbb, 802.1Qaz, 802.1X, 802.3ac, 802.3bj, 802.3x, 802.1t
• Опция за монтаж:
  Rackmount
• Routing:
  Layer 3 Advanced
• Памет (Flash, RAM):
  RAM: 4 GB
• VLAN (брой, стандарти):
  802.1Q VLAN Tagging, GVRP; 4K Layer 2 VLANs; 500 Layer3 VLANs
• L3 мрежови стандарти:
  OSPF
• IPv6 functionality:
  General IPv6 protocols are supported.
• Захранване:
  Redundant, hot-swappable power supplies
• Гаранция:
  12
• QoS:
  Access Control Lists, Prefix List, Route-Map, Rate Shaping (Egress), Rate Policing (Ingress), Scheduling Algorithms (Round Robin, Weighted Round Robin, Deficit Round Robin, Strict Priority), Weighted Random Early Detect
• Управление:
  SNMPv1/2; SSHv2; FTP, TFTP, SCP; Syslog; Port Mirroring; RADIUS; 802.1X; Support Assist (Phone Home); Netconf APIs; XML Schema; CLI Commit (Scratchpad); sFlow
